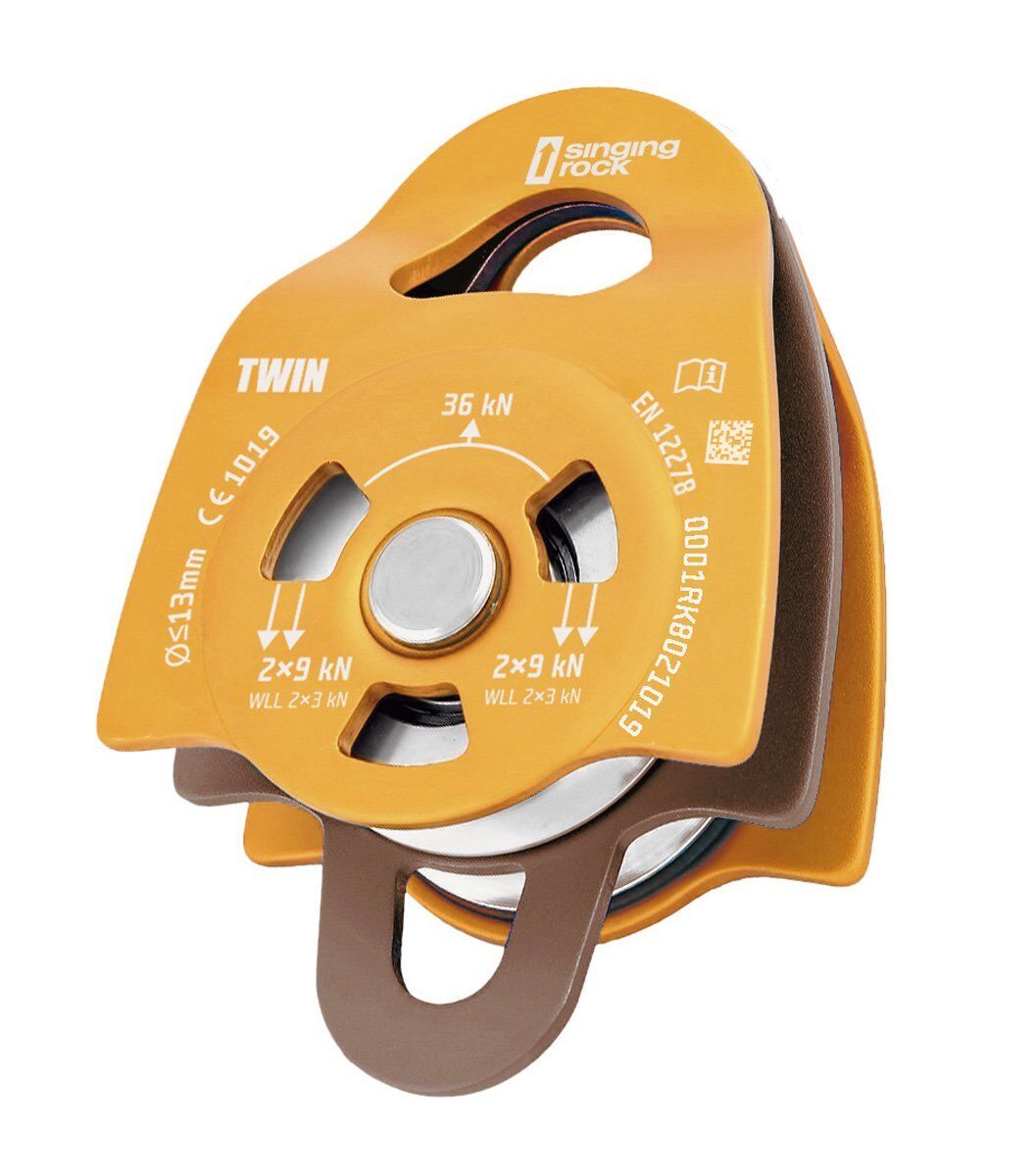

Singingrock Pulley Twin Roll
Singingrock Pulley Twin Roll
The Singingrock Pulley Twin Roll Orange Peel is a large twin pulley for those who need great handling efficiency, durability, and light weight.
Durable and lightweight double sheave for industrial use and conveying systems. The sealed ball bearing and large sheave diameter provide a high efficiency of 94% for use with static and dynamic textile ropes.
Designed and optimized for use with Prusik friction hitches or any shackle. The upper attachment point accommodates up to three carabiners.
Formed side plates protect the rope from contact with the environment.
Forged pulley and ball bearing anti-dust cover ensure long life.
Side plate holes allow for cleaning around the ball bearing.
Lower attachment point features a 12 kN unique production number marking.
Features
Weight: 421 g (14.9 oz)
Materials: Sheaves and side plates - aluminum alloy, bearings - steel, axle - stainless steel
Force: 36 kN
Max. rope diameter: 13 mm
Bearing: sealed ball
Working load: 4 x 3 kN
CE1019
EN 12278
